EGN 9271 NOFROST

Product dimensions (H/W/D) cm 212.6 / 60.2 / 61
Cut out dimensions (H/W/D) cm 213.4 / 61 / min. 63.5
Gross / Net weight kg 168 / 156
Voltage V/Hz 220-240 / 50

Seamlessly integrated LED sidewall lighting in the Monolith casts a beautiful and even glow that can be adjusted to your liking. It gives a soft, brightening effect upon opening the appliance doors and comes with a pleasing night dimming feature. InfinityLight adds drama and flair while emitting less heat to preserve food quality.

Monolith’s automatic IceMaker produces 1.6 kg (3.5 pounds) of filtered ice in 24 hours. Activate the SuperFrost function for an even greater production capability. With a 1.8 kg (4-pound) storage capacity, you’ll never be without.

The plumbed-in IceMaker automatically keeps you topped up with the finest quality ice cubes so that you are prepared for every occasion.

Monolith’s doors close automatically and gently thanks to our SoftSystem technology, which eliminates slamming even when shelves are fully loaded. Depending on the size of the Monolith unit, door hinges can hold up to 35.8 kg

FrostSafe-Systemfeaturing drawers closed all the way round with transparent fronts

Please note: despite careful data management, we reserve the right to make technical changes; and discrepancies may occur between the image or text content and the original appliance.
Energy consumption (kWh/y)
Sound rating dB(A) *39
Refrigerator capacity litre
BioFresh / BioFresh-Plus comp. litre
Freezer capacity litre325
Number of shelves4
Number of door racks3
Number of FrostSafe drawers3
Number of BioFresh / BioFresh-Plus drawers
Electronic controlInfinitySwipe
Door / side wallsSteel
Refrigerator temperature range °C **
Freezer temperature range °C-14°C to -27°C
Temperature alarmVisual and audible
Defrost typeAutomatic
Interior lightInfinityLight
Door alarmAudible
Internal water dispenser
Water filterYes
IceMakerFixed water connection 20 mm (3/4″)
Ice cube output kg/24h1.6
SoftSystemYes
Door hingesLeft, reversible ***

* Noise output – according to EN 60704-3
** BioFresh bins, 0°C. BioFresh-Plus bins, -2°C or 0°C.
*** Please contact us for door reversal.

Product dimensions (H/W/D) cm 212.6 / 60.2 / 61
Cut out dimensions (H/W/D) cm 213.4 / 61 / min. 63.5
Gross / Net weight kg 168 / 156
Voltage V/Hz 220-240 / 50
Stainless steel front
Stainless steel front 61.0 cm (Part no. 990188300)
Stainless steel front 76.2 cm (Part no. 990187200)
Handle variants
Flat brushed aluminium handle (Part no. 990146100)
Round stainless steel handle (Part no. 990148900)
Square brushed aluminium handle (Part no. 990149200)
Stainless steel toe kick
Base – trim / 61.0 cm (Part no. 990149300)
Base – trim / 76.2 cm (Part no. 990153000)
Base – trim / 137.2cm (Part no. 990178700)
Side-by-Side kit
Monolith‘s Side-by-Side kit (Part no. 990142800) includes a side wall heater to prevent condensation, metal brackets with screws, and a finishing strip to fill the gap between the appliances.

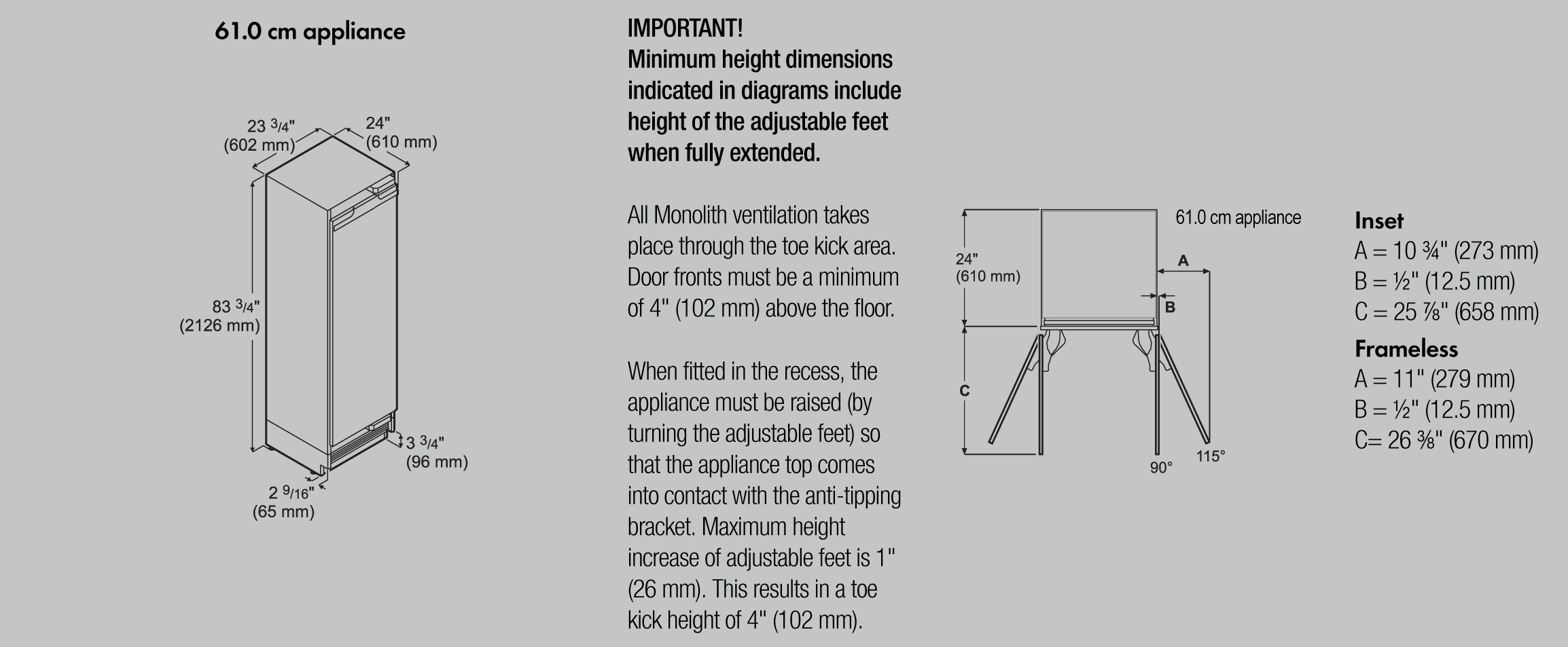

Product Dimensions

Cut Out Dimensions

Door Panel Dimensions

Product group Freezer for integrated use with NoFrost
GTIN 9005382224618
Energy consumption in 24h 1.090 kWh / 24h
Energy consumption per year 398 kWh/a
Climate class SN-T
Noise level 39 dB
Net capacity, total 322 ℓ
Gross capacity, totall 409 ℓ
Voltage 220-240 V ~
Frequency 50 Hz
Connection rating 3.0 A 194 W
Aperture height 213 cm
Dimension (packaged), H/W/D 2,270.0 / 665.0 / 765.0 mm
Aperture dimensions height/width/depth 213.36 – 213.4 / 60.96 – 61 / 63.5 cm
Weight (with packaging) 170.00 kg
Weight (without packaging) 157.00 kg
Temperature range freezer compartment -14°C to -27°C
Control 3,5″ LCD colour display, touch and swipe
Control unit Touch-Electronic
Temperature display Freezer compartment
Malfunction: Warning signal optical and acoustical
FrostControl
Door open: Warning signal, freezer compartment audible
SuperFrost quantity-controlled
SoftSystem SoftSystem
Connectable (SmartDevice-capable) *
SmartDeviceBox Prepared
Door assembly door-on-door
Door hinges left interchangeable
Door opening angle 115°
Ventilation Plinth ventilation
Please note: despite careful data management, we reserve the right to make technical changes; and discrepancies may occur between the image or text content and the original appliance.

Download PDF for more details.

OPERATING INSTRUCTIONS

ASSEMBLY AND INSTALLATION INSTRUCTIONS

Please note: despite careful data management, we reserve the right to make technical changes; and discrepancies may occur between the image or text content and the original appliance.
