EKB 9471 BIOFRESH

0° compartment BioFresh
Net capacity, total 430 l
Type of installation integrable
Aperture height 213 cm
Door assembly door-on-door
Connectable (SmartDevice-capable)
Product group Refrigerator with BioFresh for integrated use
GTIN 9005382221198
Energy consumption in 24h 0.640 kWh / 24h
Energy consumption per year 234 kWh/a
Climate class SN-T
Noise level 39 dB
Net capacity, total 430 ℓ
Refrigerator compartment 430 ℓ
of which BioFresh 188 ℓ
Gross capacity, total 529 ℓ
Refrigerator compartment 529 ℓ
of which BioFresh 211 ℓ
Voltage 220-240 V ~
Frequency 50 Hz
Connection rating 3.0 A 236 W
Aperture height 213 cm

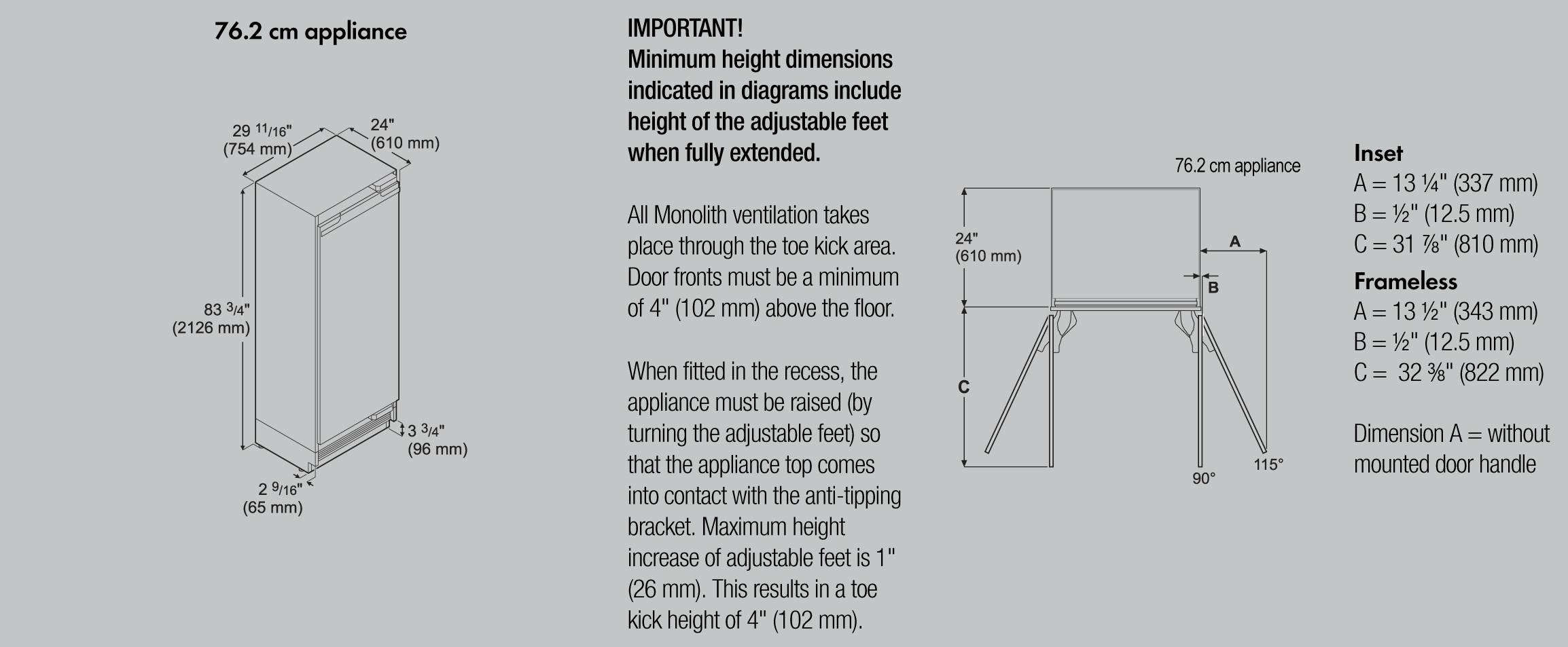

Dimension (packaged), H/W/D 2,270.0 / 665.0 / 765.0 mm

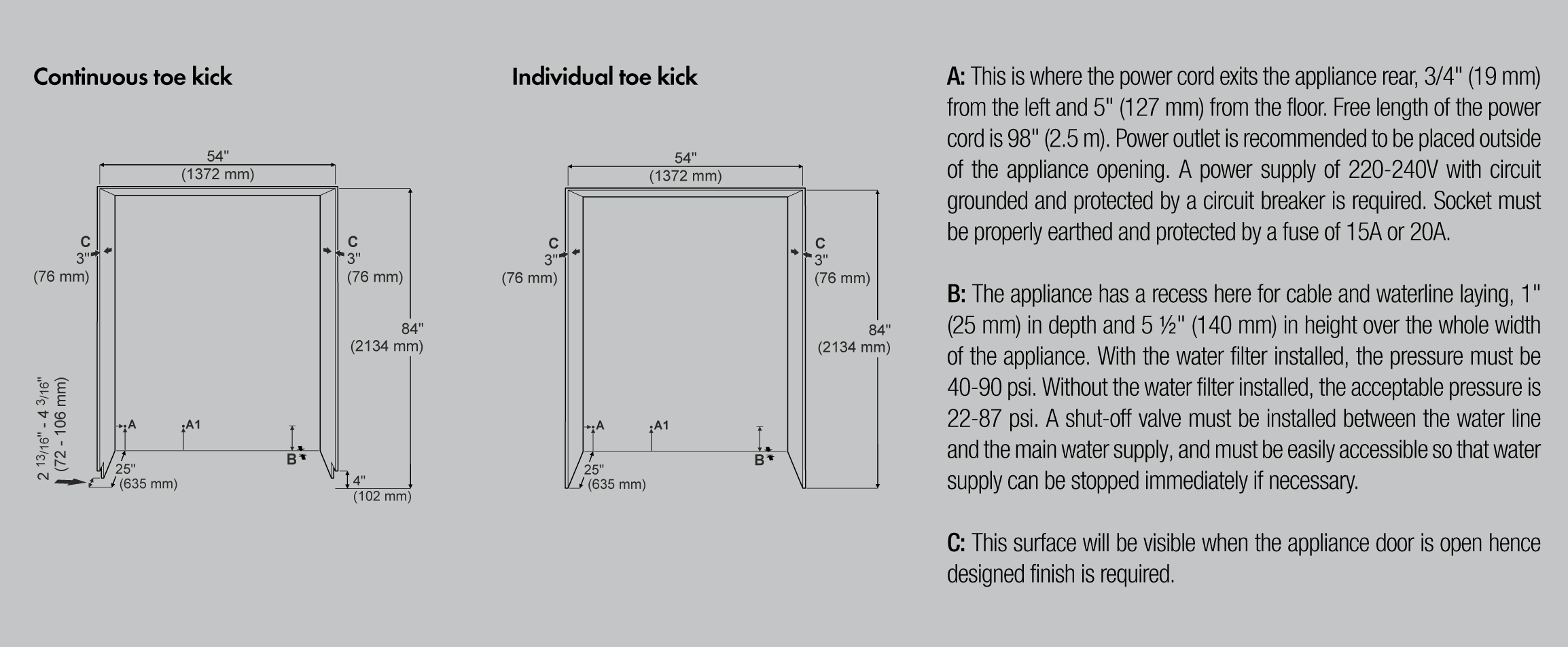

Aperture dimensions height/width/depth 213.36 – 213.4 / 60.96 – 61 / 63.5 cm
Weight (with packaging) 193.00 kg
Weight (without packaging) 178.00 kg
Temperature range freezer compartment +2°C to +7°C
Control 3,5″ LCD colour display, touch and swipe
Control unit Touch-Electronic
Temperature display Fridge & BioFresh section
Malfunction: Warning signal optical and acoustical
Door open: Warning signal, refrigerator compartment
Child proofing
SuperCool
SuperFrost
Connectable (SmartDevice-capable) *
SmartDeviceBox Prepared
SoftSystem SoftSystem
Defrosting method automatic
Forced air cooling
Lighting illuminated side wall
Number of storage shelves, refrigerator compartment 4
of which height-adjustable 3
of which is/are sectioned 0
of which are adapted for versatile use as a bottle shelf 1
Storage shelf material, refrigerator compartment glass
Bottle rack 0
Number of can racks 2
VarioBoxes 0
Egg trays
0° compartment ** BioFresh
Number of BioFresh safes 2
extendible on telescopic rails
DrySafe 1
of which HydroSafe 2
with lighting Downlight
Vegetable bins 0
of which on pull-out rollers 0
Please note: despite careful data management, we reserve the right to make technical changes; and discrepancies may occur between the image or text content and the original appliance.

Download PDF for more details.

OPERATING INSTRUCTIONS

ASSEMBLY AND INSTALLATION INSTRUCTIONS
